Aluminum Honeycomb Panel: Lightweight Wall and Ceiling Panel for Commercial Projects
Aluminum honeycomb panel is a lightweight composite panel made with two aluminum sheets and an aluminum honeycomb core. It is widely used in commercial walls, ceilings, transportation buildings, interior cladding, and selected facade applications.
For overseas contractors, distributors, and project buyers, aluminum honeycomb panel is useful when a project needs large-format panels with good flatness, low weight, and stable surface performance.
Request Aluminum Honeycomb Panel Quotation
Quick Buyer Summary
| Item | Recommendation |
|---|---|
| Best for | Large-area walls, ceilings, commercial interiors, transportation buildings |
| Main advantage | Lightweight structure with high flatness |
| Common surface | PVDF coating, powder coating, wood grain, stone look, brushed metal finish |
| Typical installation | Metal subframe, hanging system, concealed fixing, edge frame system |
| Not recommended for | Low-budget temporary decoration or projects requiring heavy impact resistance |
| Buyer should confirm | Thickness, aluminum skin thickness, honeycomb core size, coating, size, installation system |
What Is Aluminum Honeycomb Panel?
Aluminum honeycomb panel is a composite building panel made by bonding aluminum face sheets to an internal aluminum honeycomb core.
The honeycomb core works like a lightweight structural grid. It reduces panel weight while improving rigidity and flatness. This makes the panel suitable for large wall and ceiling areas where solid aluminum sheets may be too heavy or may show surface deformation.
It is not the same as aluminum solid panel. Solid aluminum panel is easier for bending, cutting, punching, and custom shapes, while aluminum honeycomb panel is better for large, flat, lightweight panel systems.

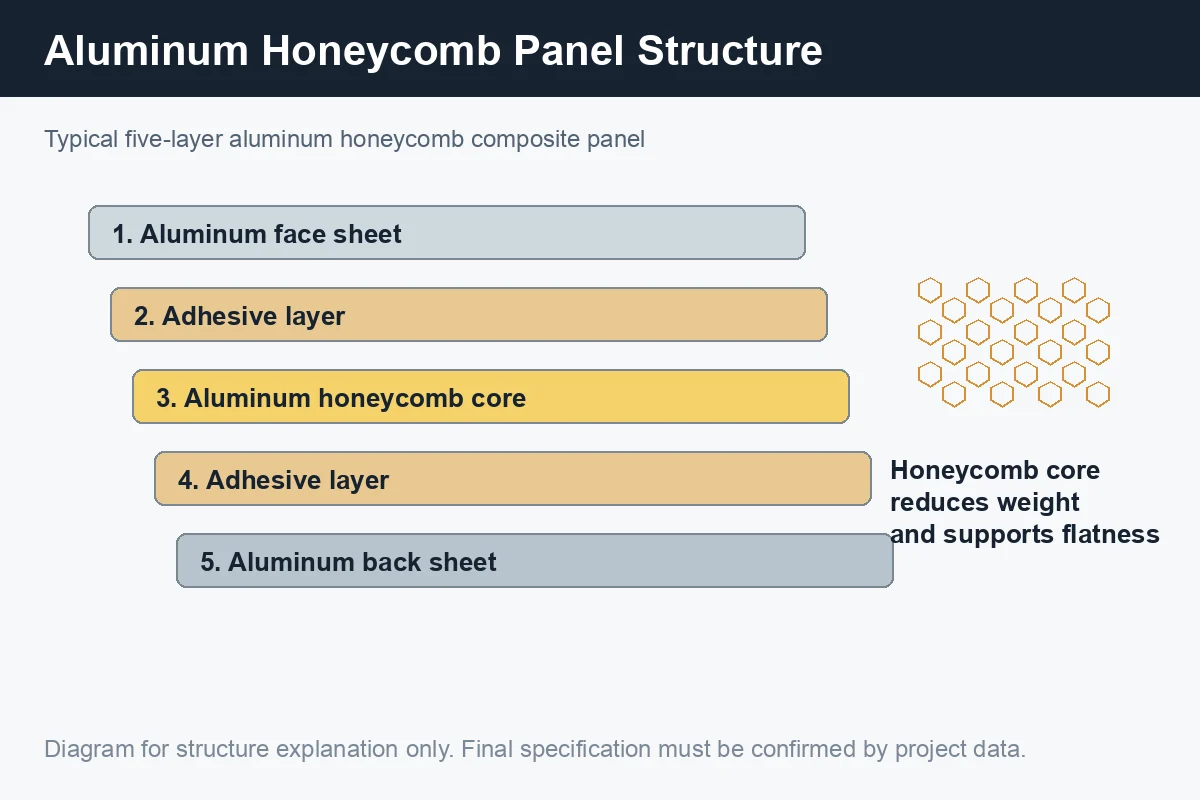

Product Structure and Material Composition
A typical aluminum honeycomb panel includes the following layers:
| Layer | Function |
|---|---|
| Aluminum face sheet | Provides visible decorative surface and weather resistance |
| Adhesive layer | Bonds aluminum skin to the honeycomb core |
| Aluminum honeycomb core | Provides lightweight rigidity and panel stability |
| Adhesive layer | Bonds the back sheet to the core |
| Aluminum back sheet | Improves balance, strength, and panel stability |
The honeycomb core is the key reason why the panel can remain lightweight and flat in large sizes.
Key Engineering Performance
| Property | Typical Value / Description |
|---|---|
| Structure | Aluminum skin + aluminum honeycomb core |
| Thickness | Commonly 7mm, 9mm, 15mm, 20mm, 25mm or custom |
| Width | Commonly around 1220mm; custom sizes available |
| Weight | Much lighter than solid metal or stone panels |
| Fire performance | Aluminum structure offers better fire resistance than many plastic-based panels |
| Surface finish | PVDF, powder coating, polyester coating, wood grain, stone look |
| Main advantage | Lightweight, rigid, flat, stable |
| Typical use | Wall panels, aluminum ceiling panels, large interior cladding, transportation buildings |
Important note:
Final performance depends on aluminum skin thickness, total panel thickness, honeycomb core specification, adhesive system, surface coating, and project installation method. Buyers should confirm technical data before bulk order.

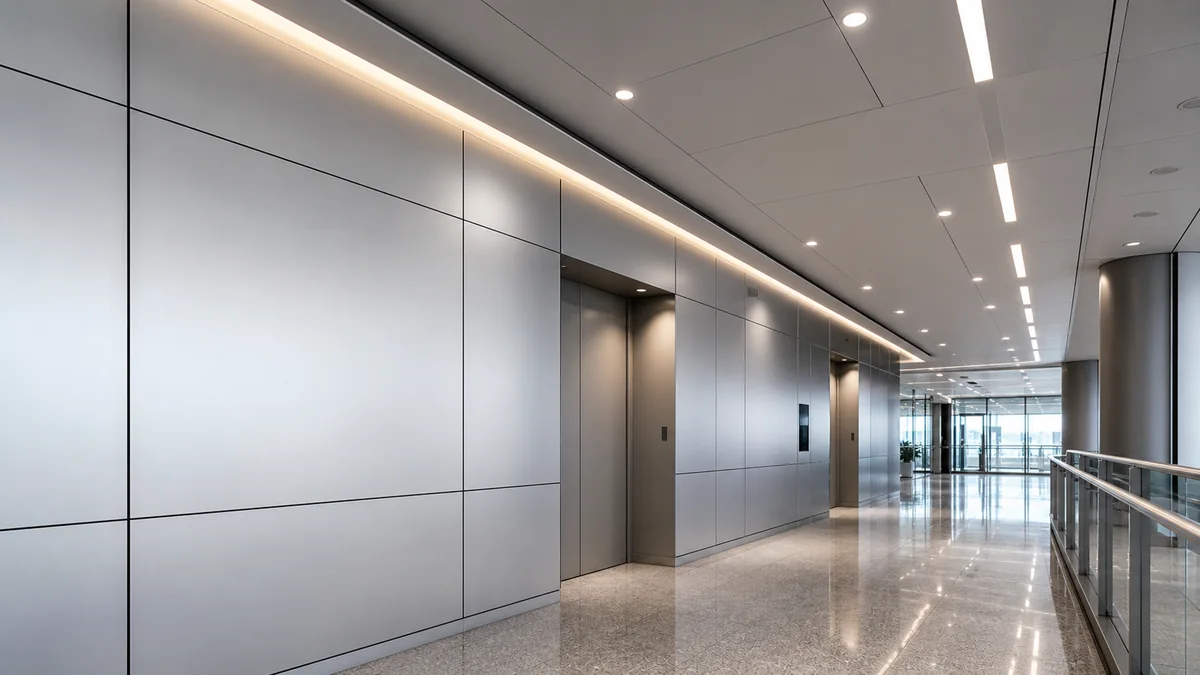

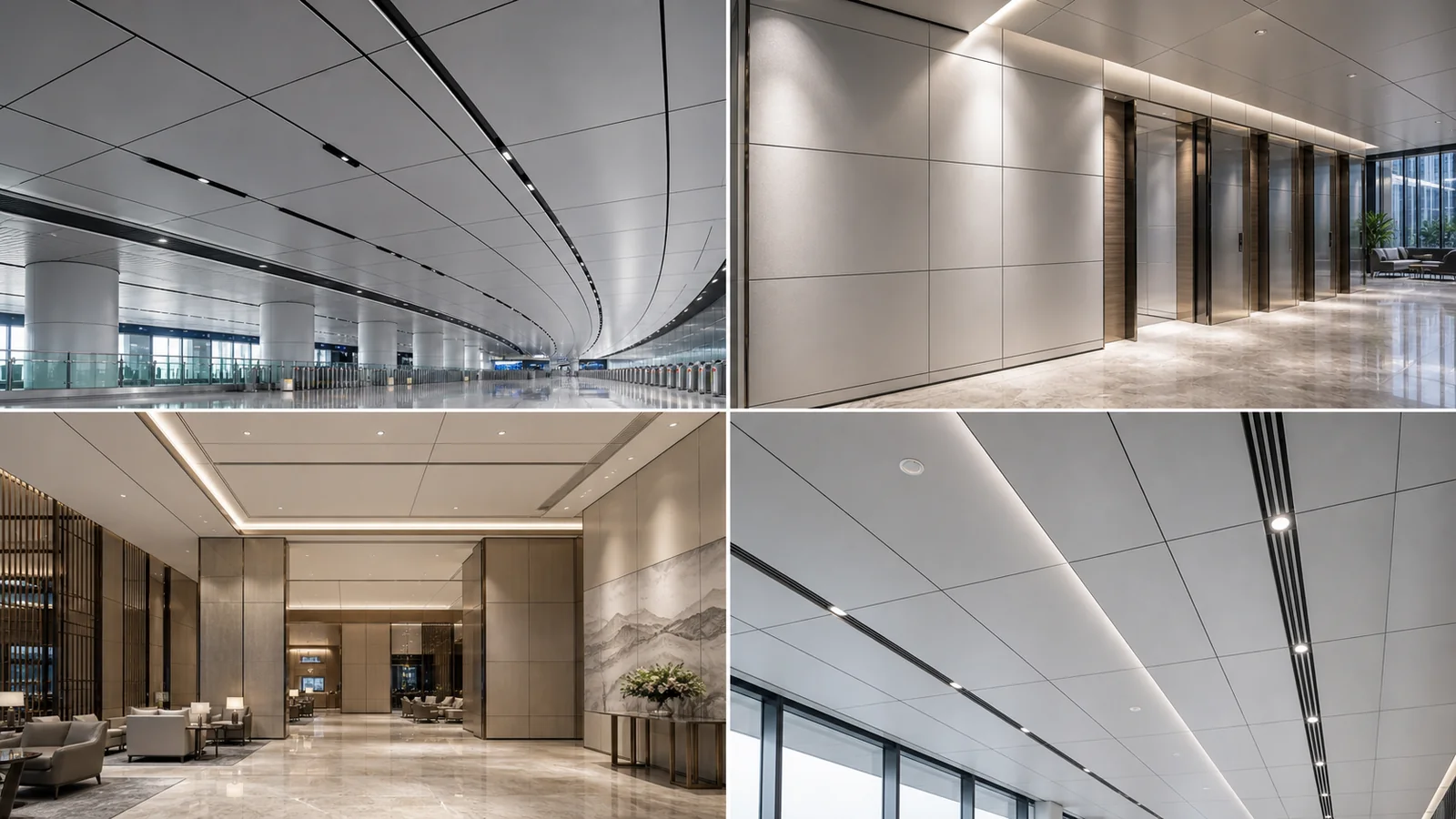

Commercial Application Scenarios
Aluminum honeycomb panels are suitable for projects where the panel needs to cover large areas while staying flat and lightweight.
| Project Type | Suitability | Reason |
|---|---|---|
| Airport or metro ceiling | Excellent | Lightweight and suitable for large ceiling areas |
| Office lobby wall | Excellent | Clean appearance and good flatness |
| Hotel public area | High | Premium wall and ceiling finish |
| Shopping mall interior | High | Large-format decorative wall cladding |
| Elevator lobby | High | Modern metal surface and easy cleaning |
| Exterior facade | Project-dependent | Requires correct coating, fixing system, and engineering design |
| Low-budget interior | Not recommended | Cost may be higher than simple PVC or bamboo fiber panels |

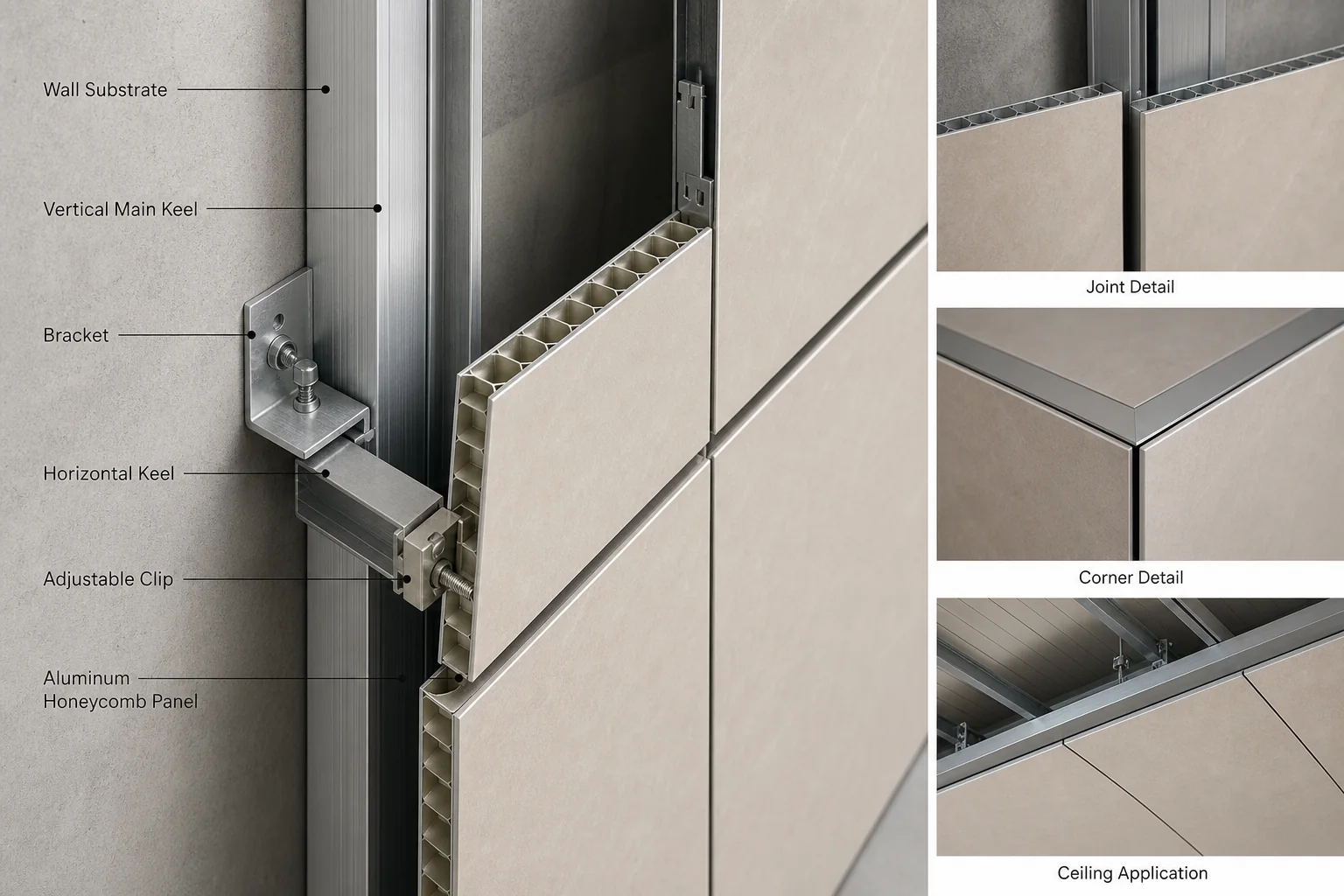

Installation System and Project Details
Aluminum honeycomb panels are usually installed with a metal subframe or hanging system.
1. Metal Subframe Installation
This is common for walls and ceilings.
Key points:
- Subframe accuracy affects final panel flatness
- Panel joints should be planned before production
- Edge finishing must match the installation method
- Fixing brackets or clips should be selected according to panel size
2. Concealed Fixing System
This is used when a cleaner appearance is required.
Key points:
- Better visual effect
- Requires accurate panel fabrication
- Suitable for premium commercial interiors
- More planning needed before production
3. Ceiling Hanging System
This is used for commercial ceilings, transportation buildings, and large public areas.
Key points:
- Lightweight panel reduces load
- Panel module size should match ceiling layout
- Access panels and lighting openings should be planned in advance
Common Project Risks
Many aluminum honeycomb panel problems are caused by poor project coordination rather than the material itself.
Common risks include:
- Panel size confirmed before final site measurement
- Joint width not planned clearly
- Wrong coating selected for the environment
- Edge detail not confirmed before production
- Subframe tolerance is poor
- Lighting openings or access panels are not coordinated
- Supplier quotes different aluminum skin thicknesses, causing unfair price comparison
For commercial projects, shop drawings, panel layout, fixing details, and surface samples should be confirmed before mass production.
How to Choose Between Aluminum Honeycomb Panel and Other Panels
| Material | Best Use | Main Advantage |
|---|---|---|
| Aluminum honeycomb panel | Large walls and ceilings | Lightweight, rigid, and flat |
| Aluminum solid panel | Facades and custom shapes | Easier to bend, punch, cut, and fabricate |
| Aluminum composite panel | Budget facade or signage | Lower cost and lighter duty |
| Bamboo fiber wall panel | Budget interior renovation | Cost-effective and easy to install |
| SPC wall panel | Wet interior areas | Waterproof and dimensionally stable |
Choose aluminum honeycomb panel when the project requires large-format panels, strong flatness, lightweight structure, and a premium metal finish.
Do not choose it only because it is “aluminum.” For small decorative areas or low-budget projects, other interior wall panels may be more cost-effective.
What Buyers Should Confirm Before Quotation
Before requesting a quotation, please prepare the following information:
- Project type: wall, ceiling, facade, airport, hotel, office, mall, etc.
- Total area in square meters
- Panel size or layout drawing
- Total panel thickness
- Aluminum skin thickness
- Honeycomb core size
- Surface finish and color
- Indoor or outdoor use
- Installation system
- Edge detail requirement
- Packing requirement
- Destination country and port
- Sample requirement before bulk order
Clear information helps suppliers quote accurately and prevents misunderstanding between different panel structures.
FAQ
Is aluminum honeycomb panel lightweight?
Yes. The honeycomb core reduces weight while maintaining rigidity, making it suitable for large wall and ceiling systems.
Is aluminum honeycomb panel better than aluminum solid panel?
It depends on the project. Honeycomb panel is better for large flat lightweight panels, while solid aluminum panel is better for custom bending, punching, and complex fabrication.
Can aluminum honeycomb panel be used outdoors?
Yes, but only when the correct aluminum thickness, coating system, edge sealing, fixing design, and project engineering requirements are confirmed.
Is it suitable for ceilings?
Yes. It is widely used in commercial ceilings, transportation buildings, and large public areas because of its low weight and good flatness.
What information is needed for quotation?
Buyers should provide panel size, total area, thickness, aluminum skin thickness, surface finish, installation system, and destination port.
For buyers comparing honeycomb panels with other exterior panels, accessories and export packing items, the Exterior Facade Materials Sourcing Guide can help organize the wider inquiry scope.
Request a Quotation
If you are sourcing aluminum honeycomb panels for a commercial project, please send us your project details.
Please include:
- Project type
- Drawing or panel size
- Total area
- Thickness requirement
- Surface finish
- Indoor or outdoor use
- Destination country
We can help check suitable specifications, surface options, packing method, and factory quotation.
